SHINAGAWA EAST ONE TOWER│About SHINAGAWA EAST ONE TOWER

↓Building Overview
↓Office specifications/Facility overview
↓Floor plan for an office floor

■Building Overview

Name	Shinagawa East One Tower
Location	2-16-1, Konan, Minato-ku, Tokyo, Japan
Main purpose	Office, retail space, hotel
Structure	Steel frame structure + steel-reinforced concrete structure
Floors	Three basement floors and 32 aboveground floors
Site space	8,277.83m² (2,504.04 tsubo)
Total floor space	118,420.62m² (358,222.23 tsubo)
Number of stores	Restaurants: 9, Retail: 5, Clinics & services: 8
Parking	Flat parking: 145 car spaces, Machine-operated parking: 193 car spaces total: 274 car spaces
Elevator	For offices: 24 people capacity x 20 elevators For the hotel: 17 people capacity x 6 elevators,for freight: 1 Elevator For emergencies: 3 elevators; for the stores on lower floors: 2 elevators
Power supply	Spot network type power receiving method
Heat supply	Regional cooler/heater
Security/management	Central monitoring/control at the disaster prevention center (central monitoring room) on the first floor
Fire prevention	Legally designated fire prevention equipment is installed, including installation of sprinklers
Smoke ventilation	Vestibule pressurization smoke control method
Earthquake resistance	Equipped with energy absorption style seismic motion mitigation device
Backup power	Equipped with gas turbine power generation device
Completion	March 31, 2003
Design/management	Nihon Sekkei, Inc.
Contractor	Takenaka Corporation
Owner	Daito Kentaku Leasing Co., Ltd.

■Office specifications/Facility overview

Space of rental room on standard floors	About 2,530m² (about 760 tsubo)
Ceiling height	Office: 2,700mm　Corridor: 2,500mm
Floor load	500 kg/m², within 1,000 kg/m² for all offices in the core
Window	Heat reflection glass, and air-flow window system for fifth floor and above
Electric capacity	Standard setting: 50 VA/m²　addition is possible
OA floor	H ＝ 150mm free-access floor
Communication equipment	Terminal for optical fiber is already installed
Backup power	Equipped with gas turbine power generation system for tenants
System ceiling	Basic module: 3,200mm× 3,200mm　Lighting: Average illumination 700 lx , two lighting fixtures are installed inside the module Ambient light detector automatically adjust light intensity of the lights on the window side
Shared TV	VHF, UHF , BS , CS, and CATV in other areas are available, digital terrestrial broadcasting, digital terrestrial broadcasting
Air conditioning	Divided control of four systems in the interior section and four systems in perimeter section Air conditioning control is available through installing VAV in individual spans in the interior section
Room entrance/exit	Room entrance/exit management with non-contact IC card system
Security	Passive sensor installed Automatic shutdown of lights and air conditioning through confirmation of final exit Elevator movement is stopped when it is confirmed that everyone on the floor left
Amenity	Restroom/lavatory One restroom/lavatory each for men and women , equipped with warm water Washlet, jet towels are installed Two small kitchens on each floor, and one teeth brushing corner on each floor

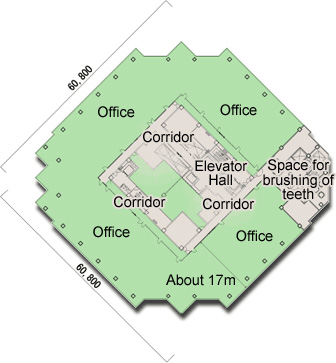

■Floor plan for an office floor

The size of one office floors is 760 tsubo, which is one of the largest in Tokyo. The floors can be easily divided with the center-core method. Great panoramic views of Tokyo Tower, Rainbow Bridge, Haneda Airport, and Goten Mountain expand from the office windows. The workspace is comfortable and allows freedom for workers, with the free access floor of 150 mm in height and the ceiling height of 2.7 m or higher. The building structure has the cutting edge earthquake resistant feature that is more advanced than the new earthquake resistant standard.
